Weichai Marine Series
Previous
Next
QUICK DETAILS

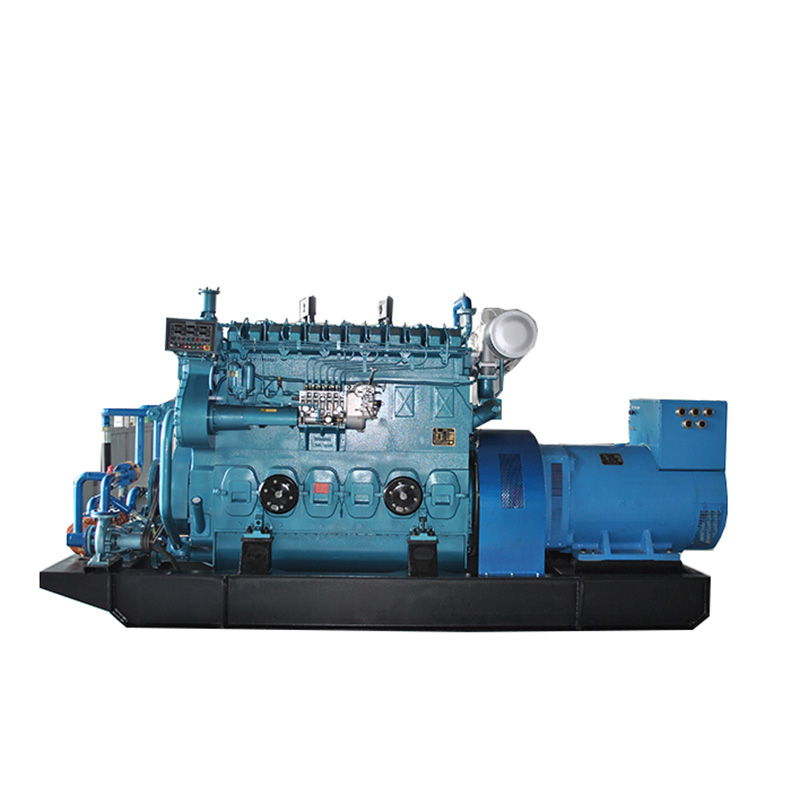

WEICHAI Marine Generator
Power range: 24kW-1500kW; 30kVA-1875kVA
50Hz/400V, 60Hz/440V and other available
Starter of electric, air or spring motor for optional
Engine Monitor, Auto start controller or remote controller
Driven by WEICHAI engine; Alternator of Marathon, Stamford, Siemens and Kangfu for optional
EIAPP NOx TierⅡ cert issued by IMO
CCS, BV, RINA, RS, RRR, GL certified
50HZ
60HZ
50HZ
Genset model | Output power | Engine model | Bore*Stroke | CYL | Displacement | C/R | Fuel consumption | Dimension | Weight | |
KW | KVA | (mm) | （L） | L/h | (mm) | (Kg) | ||||
CCFJ24ELK | 24 | 30 | D226B-3CD | 105*120 | 3 | 3.12 | 16.4:1 | 5.5 | 1580*1200*1180 | 1130 |
CCFJ30ELK | 30 | 37.5 | TD226B-3CD | 105*120 | 3 | 3.12 | 16.4:1 | 6.9 | 1590*1200*1180 | 1150 |
CCFJ40ELK | 40 | 50 | WP4CD66E200 | 105*130 | 4 | 4.5 | 18:01 | 8.2 | 1775*1200*1180 | 1250 |
CCFJ50ELK | 50 | 62.5 | WP4CD66E200 | 105*130 | 4 | 4.5 | 18:01 | 10.3 | 1775*1200*1180 | 1290 |
CCFJ64ELK | 64 | 80 | WP4CD100E200 | 105*130 | 4 | 4.5 | 18:01 | 13.1 | 1775*1250*1210 | 1330 |
CCFJ75ELK | 75 | 93.8 | WP4CD100E200 | 105*130 | 4 | 4.5 | 18:01 | 15.4 | 1775*1250*1210 | 1350 |
CCFJ90ELK | 90 | 112.5 | WP6CD132E200 | 105*130 | 6 | 6.75 | 18:01 | 18.9 | 2205*1250*1270 | 1640 |
CCFJ100ELK | 100 | 125 | WP6CD132E200 | 105*130 | 6 | 6.75 | 18:01 | 21 | 2205*1250*1270 | 1640 |
CCFJ120ELK | 120 | 150 | WP6CD152E200 | 105*130 | 6 | 6.75 | 18:01 | 25.2 | 2260*1250*1270 | 1650 |
CCFJ150ELK | 150 | 187.5 | WP10CD200E200 | 126*130 | 6 | 9.73 | 17:01 | 29.2 | 2600*1250*1530 | 1950 |
CCFJ180ELK | 180 | 225 | WP10CD238E200 | 126*130 | 6 | 9.73 | 17:01 | 35.7 | 2600*1250*1550 | 1980 |
CCFJ200ELK | 200 | 250 | WP10CD264E200 | 126*130 | 6 | 9.73 | 17:01 | 40.1 | 2700*1250*1620 | 2100 |
CCFJ250ELK | 250 | 312.5 | WP12CD317E200 | 126*155 | 6 | 11.6 | 17:01 | 52.5 | 2730*1250*1660 | 2180 |
CCFJ300ELK | 300 | 375 | WP13CD385E200 | 127*165 | 6 | 12.54 | 17:01 | 63 | 2840*1250*1660 | 2300 |
60HZ
Genset model | Output power | Engine model | Bore*Stroke | CYL | Displacement | C/R | Fuel consumption | Dimension | Weight | |
KW | KVA | (mm) | （L） | L/h | (mm) | (Kg) | ||||
CCFJ24ELK | 24 | 30 | D226B-3CD1 | 105*120 | 3 | 3.12 | 16.4:1 | 5.5 | 1580*1200*1180 | 1130 |
CCFJ30ELK | 30 | 37.5 | TD226B-3CD1 | 105*120 | 3 | 3.12 | 16.4:1 | 6.9 | 1590*1200*1180 | 1150 |
CCFJ40ELK | 40 | 50 | WP4CD66E201 | 105*130 | 4 | 4.5 | 18:01 | 8.2 | 1775*1200*1180 | 1250 |
CCFJ50ELK | 50 | 62.5 | WP4CD66E201 | 105*130 | 4 | 4.5 | 18:01 | 10.2 | 1775*1200*1180 | 1290 |
CCFJ64ELK | 64 | 80 | WP4CD100E201 | 105*130 | 4 | 4.5 | 18:01 | 13.1 | 1775*1250*1210 | 1330 |
CCFJ75ELK | 75 | 93.8 | WP4CD100E201 | 105*130 | 4 | 4.5 | 18:01 | 15.4 | 1775*1250*1210 | 1350 |
CCFJ90ELK | 90 | 112.5 | WP6CD132E201 | 105*130 | 6 | 6.75 | 18:01 | 18.9 | 2205*1250*1270 | 1640 |
CCFJ100ELK | 100 | 125 | WP6CD132E201 | 105*130 | 6 | 6.75 | 18:01 | 21 | 2205*1250*1270 | 1640 |
CCFJ120ELK | 120 | 150 | WP6CD158E201 | 105*130 | 6 | 6.75 | 18:01 | 25.2 | 2260*1250*1270 | 1650 |
CCFJ150ELK | 150 | 187.5 | WP10CD200E201 | 126*130 | 6 | 9.75 | 17:01 | 29.2 | 2600*1250*1530 | 1950 |
CCFJ180ELK | 180 | 225 | WP10CD238E201 | 126*130 | 6 | 9.75 | 17:01 | 35.7 | 2600*1250*1550 | 1980 |
CCFJ200ELK | 200 | 250 | WP10CD264E201 | 126*130 | 6 | 9.75 | 17:01 | 40.1 | 2700*1250*1620 | 2100 |
CCFJ250ELK | 250 | 312.5 | WP12CD317E201 | 126*155 | 6 | 11.6 | 17:01 | 52.5 | 2730*1250*1660 | 2180 |
CCFJ300ELK | 300 | 375 | WP13CD385E201 | 127*165 | 6 | 12.54 | 17:01 | 63 | 2840*1250*1660 | 2300 |
