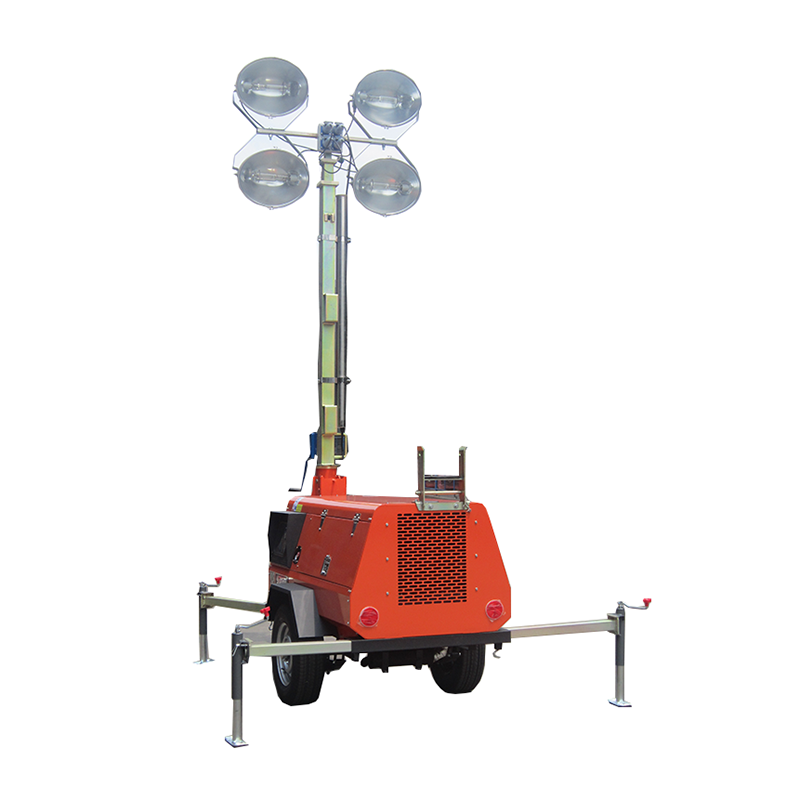

Lighting Town Generator Special Genset
QUICK DETAILS
Product Name：All-round Remote Control Light Tower
Protection Grade：IP66
Lighting Town Generator Special Genset
QUICK DETAILS
Lighting Town Generator Special Genset
| Basic Model | 4HVL4000 | ||
| Dimensions | Length | 3210mm | |
| Width | 1620mm | ||
| Height | 2460mm | ||
| Full extending height | 9m | ||
| Gross weight | 1410kg | ||
| Engine | Engine model | D1105 (KUBOTA) | |
| Speed(rpm) | 1,500 | ||
| Number of cylinder | 3 | ||
| Engine characters | 4cycles,watercooled diesel | ||
| Combustion system | E-TVCS | ||
| Engine aspiration | Naturally aspirated | ||
| Emission level | Regular | ||
| Alternator | Standard configuration | E1C13SB/4 | |
| Frequency(Hz) | 50 | ||
| Rating volatge | 230 VAC | ||
| Alternator insulation | Class H | ||
| Alternator protection grade | IP23 | ||
| Mast&Lights | Type of lights | Regular metal halide | |
| Light’s fixture | Oval | ||
| Luminous flux | 4*110000 LM | ||
| Number & power of lights | 4×1000W | ||
| Number of mast sections | 7 | ||
| Mast extension | Hydraulic | ||
| Mast rotation | Manually,max 330° lockable | ||
| Light tilt | 12VDC Electric linear actuator | ||
| Trailer | Trailer suspension & axle with brakes | Leaf spring&single axle with mechanical brakes | |
| Tow bar | Retractable&adjustable supporting wheel tow bar | ||
| Stabilizing legs & number | 4 pcs hydraulic pivot legs | ||
| Wheel’s rim size & tires | 16″ | ||
| Tow adapter | 2″or 50mm ball adapter | ||
| Tail lights | Tail light kit | ||
| Additional Features | Fuel tank type | Punch forming steel sheet | |
| FUEL tank capacity | 120 L | ||
| Operating hours with full fuel | 85 H | ||
| Wires & electric components | Regular | ||
| Out socket | 1 220V/16A | ||
| Generator controller | DSE 702AS | ||
| Max.against wind | 20 m/s (45 mph) | ||
| Acoustic pressure | 72dB(A) at 7 meters away | ||
| Standard colour | ELK orange truck,black or galvanized all of the steel components | ||
QUICK DETAILS
Characteristic of Performance
Protection grade：IP65
It adopts YINSONG or HONDA or YAMAHA or BRIGGS or KOHLER gasoline generator.
The lamp head can realize 360° remote controlled lighting up and down within 30m.The remote controller can also control ON and OFF of every lamp respectively .
The lifting rod is controlled by remote controller or gastight motor driven pump.
The lifting rod of the “model A”is supportted by the adjustable tripod which can fitted stably on the slope less than 15 degrees .As to the “model B”,its light head ,lifting rod and generator set are mounted together.
It has universal wheel and track wheel on the base of generator set ,so as to the easily transportation on uneven road.
High quality metal material with compact structure and stable performance make sure the lamp can work in harsh environment .Rain proof and wind proof grade is 8 .
The product is subject to adjustment upon the clients needs ,so as to satisfy their personal demand . Manual control case is available .
Application
It is applicable to large and high brightness lighting in the operation sites of large scale construction,rescue and maintenance ,accident handing,disaster relieve and some other worktasks,etc.
