- Low Noise
- Low Emmission
- Customized
Mobile
+8613952645257
sales@eleclinkpower.com

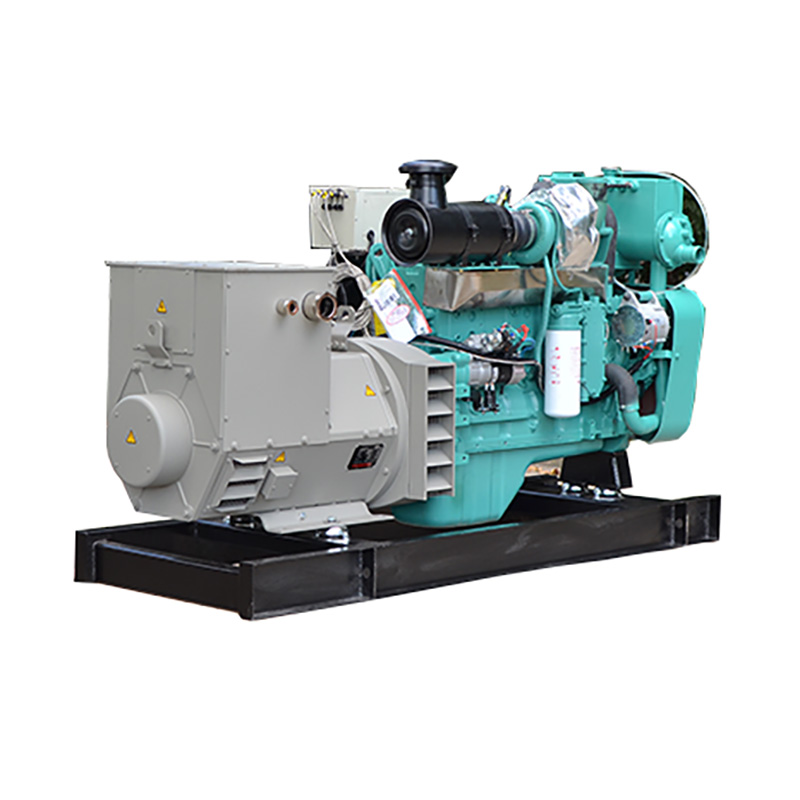

Cummins Marine Series
QUICK DETAILS
Eleclink CUMMINS Marine Generator
Power range: 30kW-1000kW; 37kVA-1250kVA
50Hz/400V, 60Hz/440V and other available
Starter of electric, air or spring motor for optional
Engine Monitor, Auto start controller or remote controller
Driven by CUMMINS engine; Alternator of Marathon, Stamford, Siemens and Kangfu for optional
EIAPP NOx TierⅡ cert issued by IMO
CCS, ABS, BV, RINA, RS, GL certified
50HZ
60HZ
50HZ
Genset model | Output power | Engine model | Bore*Stroke | CYL | Displacement | C/R | Fuel consumption | Dimension | Weight | |
KW | KVA | (mm) | （L） | L/h | (mm) | (Kg) | ||||
CCFJ30ELK | 30 | 37.5 | 4BTA3.9-GM47 | 102×102 | 4 | 3.9 | 17.3:1 | 6.39 | 1650*850*1270 | 760 |
CCFJ40ELK | 40 | 50 | 4BTA3.9-GM47 | 102×102 | 4 | 3.9 | 17.3:1 | 10.02 | 1740*850*1270 | 800 |
CCFJ50ELK | 50 | 63 | 6BT5.9-GM83 | 102×120 | 6 | 5.9 | 17.3:1 | 12.47 | 1900*895*1300 | 1000 |
CCFJ64ELK | 64 | 80 | 6BT5.9-GM83 | 102×120 | 6 | 5.9 | 17.3:1 | 15.96 | 1900*895*1300 | 1100 |
CCFJ75ELK | 75 | 93.75 | 6BT5.9-GM83 | 102×120 | 6 | 5.9 | 17.3:1 | 18.71 | 1920*895*1300 | 1250 |
CCFJ90ELK | 90 | 112.5 | 6BTA5.9-GM100 | 102×120 | 6 | 5.9 | 17.3:1 | 22.45 | 1995*895*1300 | 1300 |
CCFJ100ELK | 100 | 125 | 6CT8.3–GM115 | 114×135 | 6 | 8.3 | 17.3:1 | 24.94 | 2110*860*1360 | 1650 |
CCFJ120ELK | 120 | 150 | 6CTA8.3-GM155 | 114×135 | 6 | 8.3 | 17.3:1 | 29.93 | 2110*860*1360 | 1700 |
CCFJ150ELK | 150 | 187.5 | 6LTAA8.9-GM200 | 114×145 | 6 | 8.9 | 16.6:1 | 31.8 | 2210*860*1400 | 1870 |
CCFJ180ELK | 180 | 225 | 6LTAA8.9-GM200 | 114×145 | 6 | 8.9 | 16.6:1 | 38.16 | 2210*860*1400 | 1890 |
CCFJ200ELK | 200 | 250 | NTA855-DM | 140×152 | 6 | 14 | 14.0:1 | 48.94 | 2760*995*1790 | 3100 |
CCFJ200ELK | 200 | 250 | N855-DM | 140X152 | 6 | 14 | 14.0:1 | 48.94 | 2760*995*1790 | 3100 |
CCFJ250ELK | 250 | 313 | NTA855-DM | 140×152 | 6 | 14 | 14.0:1 | 61.18 | 2760*995*1790 | 3180 |
CCFJ250ELK | 250 | 313 | N855-DM | 140×152 | 6 | 14 | 14.0:1 | 61.18 | 2760*995*1790 | 3180 |
CCFJ280ELK | 280 | 350 | NTA855-DM | 140×152 | 6 | 14 | 14.0:1 | 68.52 | 2998*995*1790 | 3250 |
CCFJ280ELK | 280 | 350 | N855-DM | 140×152 | 6 | 14 | 14.0:1 | 68.52 | 2998*995*1790 | 3250 |
CCFJ300ELK | 300 | 375 | KTA19-DM | 159×159 | 6 | 19 | 14.5:1 | 44.8 | 3170*1000*1905 | 3750 |
CCFJ320ELK | 320 | 400 | K19-DM | 159×159 | 6 | 19 | 13.9:1 | 49.5 | 3170*1000*1905 | 3750 |
CCFJ350ELK | 350 | 438 | KTA19-DM | 159×159 | 6 | 19 | 13.9:1 | 49.5 | 3170*1000*1905 | 3800 |
CCFJ350ELK | 350 | 438 | K19-DM | 159×159 | 6 | 19 | 13.9:1 | 49.5 | 3170*1000*1905 | 3800 |
CCFJ400ELK | 400 | 500 | KTA19-DM | 159×159 | 6 | 19 | 13.9:1 | 54.2 | 3170*1000*1905 | 3950 |
CCFJ400ELK | 400 | 500 | K19-DM | 159×159 | 6 | 19 | 13.9:1 | 54.2 | 3170*1000*1905 | 3950 |
CCFJ500ELK | 500 | 625 | KT38-DM | 159×159 | 12 | 38 | 15.5:1 | 78.5 | 3950*1500*2500 | 6200 |
CCFJ600ELK | 600 | 750 | KTA38-DM | 159×159 | 12 | 38 | 14.5:1 | 87.5 | 4050*1400*268 | 6550 |
CCFJ650ELK | 650 | 813 | KTA38-DM | 159×159 | 12 | 38 | 14.5:1 | 78.5 | 4050*1400*2680 | 6980 |
CCFJ700ELK | 700 | 875 | K38-DM | 159×159 | 12 | 38 | 13.9:1 | 103.7 | 4100*1500*2500 | 6500 |
CCFJ800ELK | 800 | 1000 | KTA38-DM | 159×159 | 12 | 38 | 13.9:1 | 109.4 | 4100*1500*2500 | 7000 |
CCFJ800ELK | 800 | 1000 | K38-DM | 159×159 | 12 | 38 | 13.9:1 | 109.4 | 4100*1500*2500 | 7000 |
CCFJ1000ELK | 1000 | 1250 | K50-DM | 159×159 | 12 | 38 | 15.0:1 | 141.7 | 4250*1500*2500 | 7500 |
60HZ
Genset model | Output power | Engine model | Bore*Stroke | CYL | Displacement | C/R | Fuel consumption | Dimension | Weight | |
KW | KVA | (mm) | （L） | L/h | (mm) | (Kg) | ||||
CCFJ40ELK | 40 | 50 | 4BTA3.9-GM65 | 102×102 | 4 | 3.9 | 17.3:1 | 10.02 | 1740*850*1270 | 800 |
CCFJ50ELK | 50 | 62.5 | 4BTA3.9-GM65 | 102×102 | 4 | 3.9 | 17.3:1 | 12.53 | 1740*850*1270 | 850 |
CCFJ64ELK | 64 | 80 | 6BT5.9-GM100 | 102×120 | 6 | 5.9 | 17.3:1 | 15.96 | 1905*895*1300 | 1100 |
CCFJ75ELK | 75 | 93.75 | 6BT5.9-GM100 | 102×120 | 6 | 5.9 | 17.3:1 | 18.68 | 1920*895*1300 | 1250 |
CCFJ90ELK | 90 | 112.5 | 6BTA5.9-GM120 | 102×120 | 6 | 5.9 | 17.3:1 | 22.41 | 1995*895*1300 | 1300 |
CCFJ100ELK | 100 | 125 | 6BTA5.9-GM120 | 102×120 | 6 | 5.9 | 17.3:1 | 24.94 | 2110*895*1360 | 1650 |
CCFJ120ELK | 120 | 150 | 6CTA8.3-GM175 | 114×135 | 6 | 8.3 | 17.3:1 | 29.93 | 2110*860*1360 | 1700 |
CCFJ150ELK | 150 | 187.5 | 6CTA8.3-GM175 | 114×135 | 6 | 8.3 | 17.3:1 | 37.41 | 2685*860*1790 | 1750 |
CCFJ250ELK | 250 | 312.5 | NTA855-DM | 140×152 | 6 | 14 | 14.0:1 | 61.18 | 2760*995*1790 | 3180 |
CCFJ250ELK | 250 | 312.5 | N855-DM | 140×152 | 6 | 14 | 14.0:1 | 61.18 | 2760*995*1790 | 3180 |
CCFJ280ELK | 280 | 350 | NTA855-DM | 140×152 | 6 | 14 | 14.0:1 | 66.07 | 2850*995*1790 | 3250 |
CCFJ280ELK | 280 | 350 | N855-DM | 140×152 | 6 | 14 | 14.0:1 | 66.07 | 2850*995*1790 | 3250 |
CCFJ350ELK | 350 | 437.5 | KTA19-DM | 159×159 | 6 | 19 | 13.9:1 | 84.82 | 3170*1000*1905 | 3800 |
CCFJ380ELK | 380 | 475 | K19-DM | 159×159 | 6 | 19 | 13.9:1 | 95 | 3170*1000*1905 | 3850 |
CCFJ400ELK | 400 | 500 | KTA19-DM | 159×159 | 6 | 19 | 13.9:1 | 96.94 | 3170*1000*1905 | 3950 |
CCFJ400ELK | 400 | 500 | K19-DM | 159×159 | 6 | 19 | 13.9:1 | 96.94 | 3170*1000*1905 | 3950 |
CCFJ450ELK | 450 | 562.5 | KTA19-DM | 159×159 | 6 | 19 | 13.9:1 | 109.06 | 3950*1500*2500 | 4000 |
CCFJ600ELK | 600 | 625 | KTA38-DM | 159×159 | 12 | 38 | 13.9:1 | 146.11 | 4100*1500*2500 | 6300 |
CCFJ700ELK | 700 | 875 | KTA38-DM | 159×159 | 12 | 38 | 14.0:1 | 170.47 | 4100*1500*2500 | 6400 |
CCFJ720ELK | 720 | 900 | KTA38-DM | 159×159 | 12 | 38 | 14.0:1 | 180 | 4100*1500*2500 | 6400 |
CCFJ720ELK | 720 | 900 | K38-DM | 159×159 | 12 | 38 | 14.0:1 | 180 | 4100*1500*2500 | 6400 |
CCFJ800ELK | 800 | 1000 | KTA38-DM | 159×159 | 12 | 38 | 14.5:1 | 197.82 | 4100*1500*2500 | 7100 |
CCFJ800ELK | 800 | 1000 | K38-DM | 159×159 | 12 | 38 | 14.5:1 | 197.82 | 4100*1500*2500 | 7100 |
CCFJ900ELK | 900 | 1125 | KTA38-DM | 159×159 | 12 | 38 | 14.5:1 | 219.18 | 4250*1500*2500 | 7500 |
CCFJ1150ELK | 1150 | 1438 | K50-DM | 159×159 | 12 | 50 | 13.9:1 | 287.5 | 4250*1500*2500 | 7500 |
